Have you ever come across toe clamps and wondered what they are and why they are so essential in various industries? Look no further!
In this blog post, we will delve into the fascinating world of toe clamps, exploring their design, applications, and the different types available. Get ready to discover how these versatile and crucial clamping devices can make a substantial difference in your work environment!
As you read through this comprehensive guide, you will gain valuable insights to help you choose the perfect toe clamp for your specific needs. Not only will we discuss the two main types of toe clamps – T-Slot and Edge Clamps – but we will also provide tips for using them effectively and ensuring their longevity. So let’s dive right in and unlock the secrets of toe clamps!
- This guide provides an overview of the fundamentals and applications of toe clamps to help users select the right clamping solution.
- T-Slot Toe Clamps provide secure clamping force with a smooth surface and serrated clamping surface, while Edge Clamps offer various sizes for holding workpieces along edges.
- Assess project requirements, compare models & follow maintenance tips to ensure optimal performance when using toe clamps.
Understanding Toe Clamps: A Comprehensive Guide
Toe clamps are highly versatile clamping devices made of steel that securely hold workpieces in place, thereby preventing movement during machining operations. They are designed to prevent workpieces from shifting or moving when placed on the side of a table. One of the advantages of utilizing edge and toe clamps is that they permit affixing a workpiece along its sides while still leaving it accessible for measuring, cutting, drilling, and more.
Understanding the basics and applications of toe clamps is essential for anyone working in industries that require precise and secure clamping solutions. That being said, let’s explore the fundamentals of toe clamps and their various applications.
The Basics of Toe Clamps
Toe clamps are tools utilized to secure a workpiece in place, with their design allowing them to wrap around the side of the workpiece and retain it without any shifting or movement. Each clamp includes a washer to protect against damage caused by the cap screw. To use a toe clamp, press the toe clamps edge against the side of the workpiece, allowing the toed edge to wrap around the side and ensure that the workpiece does not move or shift.
Being familiar with the basics of toe clamps is crucial for selecting the right clamping solution for your specific needs. In the next section, we will delve into the various applications where toe clamps play a vital role.
Applications of Toe Clamps
Toe clamps offer a multitude of applications, such as:

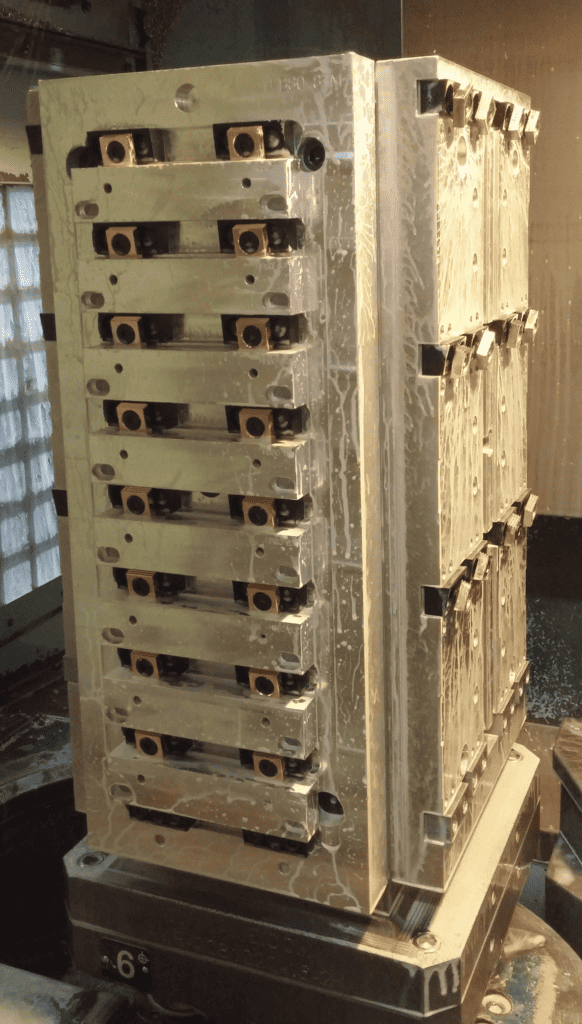

- Clamping workpieces in series
- Providing positive downforce on fixtures
- Increasing productivity and capacity in work holding
- Functioning as a stop for the next row of clamps
Additionally, they are utilized in automated and repetitive work-holding processes, where their use enhances accuracy, repeatability, and speed.
With a clear understanding of the various applications of toe clamps, you can now see how these versatile clamping devices can make a significant difference in your work environment.
Next, let’s explore the two primary types of toe clamps – T-Slot and Edge Clamps – to help you determine the most suitable option for your needs.
Types of Toe Clamps: T-Slot and Edge Clamps
T-Slot and Edge Clamps are the two primary types of toe clamps. T-slot toe clamps are specifically engineered to fit into the t-slots of machine tables, whereas toe clamps securely hold the side of the piece with considerable positive downforce without obstructing the area. To help you choose the right toe clamp for your needs, let’s delve deeper into the features and benefits of T-Slot and Edge Clamps.
By understanding the distinct differences between these two types of clamps, you can make an informed decision on which one best suits your project requirements and preferences. Now, let’s take a closer look at each type.
T-Slot Toe Clamps

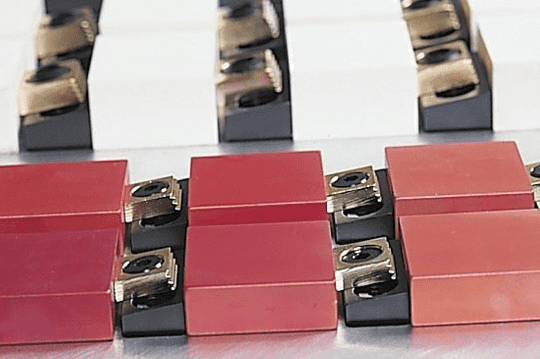

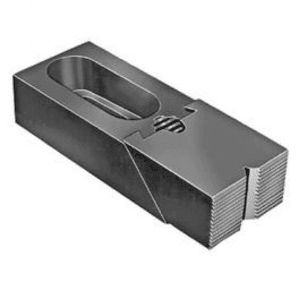

The T-Slot Toe Clamp is a clamp designed to be used in the T-slots of machine tables. This can be done while keeping a low profile so the entire top of the workpiece is accessible for machining. The clamping element has two surfaces: one that is a smooth surface for machined workpieces and another that is a serrated clamping surface for rougher work. This ensures the reliable holding of different types of components. The clamping force of T-Slot Toe Clamps ensures strong and secure clamping of your workpiece.
When mounting T-Slot Toe Clamps:
- The recommended torque is 150 N.m.
- These clamps are perfect for machine tables.
- They provide an excellent solution for those seeking strong clamping force with smooth surface or serrated clamping surface.
Edge clamps, also known as side clamps, are clamping devices utilized to firmly secure workpieces along the edges. They are specially designed to hold materials in place during woodworking, metalworking, or other fabrication processes. Edge clamps usually feature a serrated jaw that slides at a 45-degree angle to adapt to different workpiece sizes and ensure a secure grip. They are regularly employed when clamping trim to the edge of a large piece of plywood or when cutting large sheets of material.
Edge clamps are available in several shapes and sizes, including straight-edge, corner, and adjustable clamps. They offer a low-profile and discreet clamping option, making them ideal for situations where space is limited. With this knowledge, you can now make an informed decision when selecting the right edge clamp for your particular application.
Selecting the Right Toe Clamp for Your Needs
Choosing the right toe clamp for your project is a crucial step in ensuring a successful outcome. By now, you should have a solid understanding of the various types of toe clamps and their applications. However, selecting the most suitable toe clamp for your specific needs requires you to evaluate your project requirements and compare different toe clamp models.
In this section, we will provide you with a guide to help you make an informed decision when selecting the right toe clamp based on your project requirements and preferences. Simply click on the detailed descriptions for each product to ensure the best choice.
Assessing Your Project Requirements
When choosing a toe clamp, factors to consider include:
- The grip: Both a smooth surface to hold parts during finishing and a serrate edge to hold parts for roughing is ideal.
- The material
- The size and shape compatibility
- The slot placement
- The safety considerations
To make an informed decision, you should understand the distinctions between T-slot and edge clamps. T-slot clamps are engineered to fit into a T-slot groove, whereas edge clamps are crafted to fit onto the edge of a workpiece. T-slot clamps offer greater security and stability than edge clamps.
By taking these factors into account, you can ensure that you select the appropriate toe clamp for your project. In the next subsection, we will discuss how to compare different toe clamp models to further refine your selection process.
Comparing Different Toe Clamp Models
When evaluating different toe clamp models, it is important to consider the following:
- Read the accompanying manual to familiarize yourself with the features and specifications of each model.
- Examine the clamp to ensure it meets your specific needs.
- Look for toe clamps with both a smooth surface as well as teeth on the toed edge for improved grip on the workpiece.
- Consider the clamp height and design, particularly if you require a low-profile or edge-gripping clamp.
- Compare the operation method, clamping arm design, and fastening mechanism of different models.
By carefully comparing different toe clamp models, you can make an informed decision on the most suitable clamp for your project. Now that you have the knowledge to choose the right toe clamp for your needs, let’s move on to tips for using toe clamps effectively and ensuring their longevity.
Tips for Using Toe Clamps Effectively
Using toe clamps effectively is essential for maximizing their benefits and ensuring the success of your project. Proper installation and maintenance of your toe clamps not only guarantees optimal performance but also increases their longevity.
In this section, we will provide you with helpful advice for using toe clamps effectively, installing them correctly, and maintaining them for long-lasting use.
Installing Toe Clamps
To correctly position the toe clamp on the workpiece, follow these steps:

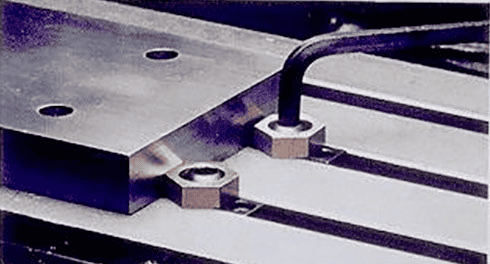

- Press the toed edge against the side of the workpiece, allowing the toed edge to wrap around the side. Both a smooth surface and serrated edge are available. Use the smooth surface for finishing and the serrated edge for roughing.
- Utilize a wrench or other tool to firmly tighten the clamping screws.
- Verify that the toe clamp is securely fastened to ensure the success of your project.
Follow these steps to properly install your toe clamps and guarantee a secure and stable clamping solution for your workpiece.
Maintaining Your Toe Clamps
To ensure that the toe clamps remain free from debris, it is advised to periodically wipe them down with a clean cloth. Regular inspection of toe clamps should be conducted to identify signs of wear and tear. If any components are found to be damaged, immediate replacement is necessary.
Additionally, it is recommended to periodically re-tighten the screws for securing the toe clamps. By adhering to these maintenance tips, you can ensure the longevity and optimal performance of your toe clamps, ultimately contributing to the success of your projects.
In conclusion, toe clamps are incredibly versatile and crucial clamping devices that play a significant role in various industries. With a clear understanding of the different types of toe clamps, their applications, and how to select the right clamp for your needs, you are well-equipped to make informed decisions when working with these essential tools.
We hope that this comprehensive guide has provided you with valuable insights into the world of toe clamps, empowering you to enhance the efficiency and effectiveness of your work environment. Embrace the power of toe clamps and take your projects to new heights!
Frequently Asked Questions
Toe clamps are clamping devices used to press against the side of a workpiece. They are usually angled, to provide downforce as well as side clamping force. And, they are low-profile so the entire top of the workpiece is accessible for machining.
To use a toe clamp, press the toed edge against the side of the workpiece and tighten the bolt that moves the edge.
Toe clamps are used to firmly hold workpieces in place and prevent them from moving during machining.
