Understanding Metal Lathe Tooling

turret + gang tooling

At the core of the manufacturing industry, metal lathe tools play a pivotal role in precisely shaping and cutting metal components. These tools, integral to a lathe’s function, carve out materials to meet stringent specifications, creating symmetrical and accurate metal objects.

The lathe, an impressive piece of machinery, rotates the workpiece against a fixed cutting tool, shaping metals that contribute significantly to various industries. With precision and accuracy, not a single piece is left unrefined, as the right hand ensures the machinery’s proper operation.

The Anatomy of a Quick Change Tool Post

Two metal lathe tool holders on a workbench, one equipped with a lever and the other with a red ball handle, both part of a Quick Change Tool Post system.

The quick change tool post, a vital component for lathe efficiency, has transformed the way machinists transition among diverse cutting operations. This ingenious device:

  • Replaces the traditional 4-way tool post
  • Allows for swift and seamless transitions
  • Minimizes downtime
  • Boosts productivity

Tool Holders

Tool holders are the linchpins that connect the quick change tool post to the myriad of cutting tools required for different operations. These holders are available in a variety of styles and sizes, from the adaptable #1 holder for external machining to angled holders, facilitating a spectrum of cutting positions for precision in tasks like turning, facing, or boring.

Mounting and Dismounting

While mounting a quick change tool post might appear as a routine task, it’s a crucial step in guaranteeing the safety and efficiency of lathe operations. Thanks to standardized dimensions, tool holders can be rapidly interchanged, eliminating the need for manual alignment each time, while systems like Capto ensure safe and straightforward tool swaps.

Adjustments and Calibration

The accuracy of a quick change tool post doesn’t happen by chance, but results from careful adjustments and calibration. Machinists use indicators or visual alignment techniques to achieve the perfect setup, ensuring that every cut is as accurate as the last.

Essential Types of Cutting Tools

Illustration of different types of lathe cutting tools

Lathe cutting tools, classified based on material, operations, structure, and feed direction, constitute an extensive assortment that machinists use to skillfully sculpt metal. Each category has a direct influence on the tool’s properties, determining its suitability for specific lathe operations.

Turning Tools

Turning tools aim to minimize the diameter of a workpiece, having rough turning tools fine-tuned for quick material removal and finish turning tools constructed for a smooth surface realization. The choice between the two depends on the desired outcome of the turning operation.

CNMG RH

CNMG RH Tool…

LH versus RH tooling always brings out a good discussion because there are advantages and disadvantages to both approaches.

Here’s how to think about it:

Benefits of RH tools is largely about spindle direction.  There’s no need to reverse spindle direction (it runs backwards on LH tooling) to drill.  With RH tooling, it always runs in the same direction as the other tools.  Changing the spindle direction puts more wear and tear on the machine, can slow down the job, and is a source of fairly painful programming errors if you forget to do it (i.e. run the spindle in the wrong direction for the tool).

The benefit of LH tooling largely comes into play with more horsepower and heavier roughing.  LH tooling directs forces down into the lathe bed.  RH tooling pull the turret up off the lathe.  In extreme cases (think solidly catching the tool or turret on a chuck jaw that’s spinning 4000 rpm), you can very seriously damage a lathe with RH tooling.  There’s talk in some threads of popping the dovetail right off (Ouch!).  While it won’t be fun to do that with LH tooling, it is not as damaging.  Proponents will also say the forces on the LH tend to reduce chatter, may yield a little better surface finish, and also make it easier to get the coolant where it’s needed.

Note that we’re really talking about inverted RH holders versus right side up LH holders.  That’s why the spindle needs to change direction and why the forces are directed where they are.  That also brings up another LH advantage which is that it is easier to see to change inserts with a right side up holder than an upside down holder.

As if that wasn’t complicated enough, you can flip a tool upside down and use it to cut in the opposite direction.  Just make sure you have the spindle running in the right direction.

Facing Tools

Facing tools specialize in creating flat surfaces on workpieces, slicing through layers of material with a side cutting edge to achieve a smooth, even finish.

Boring Bars

A row of eight essential carbide-tipped boring bars of varying lengths and sizes, perfectly aligned on a white surface, showcasing the excellence in precision machining.

Armed with replaceable carbide inserts, boring bars are the preferred tools for perfecting the dimensions and finishes of holes. These bars remain stationary as the workpiece rotates, and can create intricate shapes like slots or asymmetrical holes by moving along different axes.

I’m fond of saying you can’t own too many boring bars.  The reason is simple.  By their nature, boring bars have deflection issues.  The stiffer the bar and the shorter the bar, the less likely it is to deflect.  So, you’ll want a variety of diameters and lengths so you can use the stiffest bar that will fit in your application.

Threading Cutting Tools

lathe threading tool

Threading cutting tools, integral to the creation of threads on a workpiece, come in various forms, including taps, dies, and thread milling cutters. Each type of threading tool, from plug taps to forming taps, serves a unique purpose in crafting precise threads.

Parting Tools

OLYMPUS DIGITAL CAMERA

Parting tools play an essential role in cleanly detaching a piece from a workpiece. From the versatile straight parting tools to the specialized threading parting tools, each type is tailored to different cutting requirements, ensuring a clean separation.

Drilling Tools

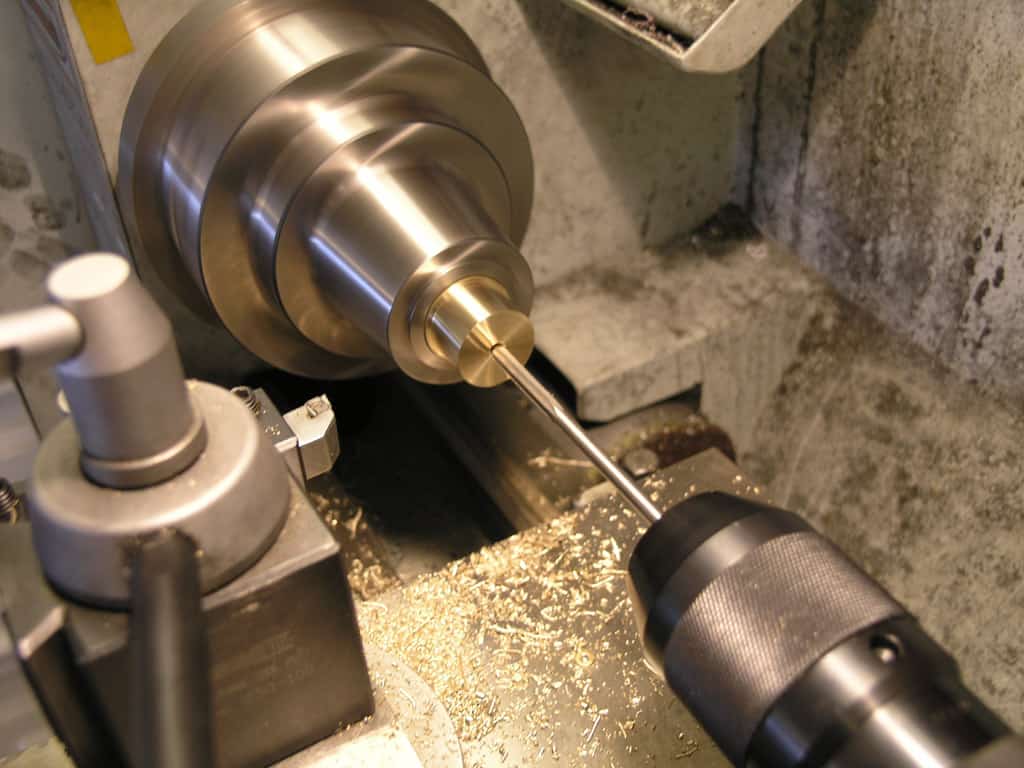

Tailstock mounted drill chuck is being used to ream this bore…

Drilling tools on a lathe reverse the standard drilling process by spinning the workpiece instead of the drill bit. This unique setup allows for precise hole creation in the rotating metal.

Specialty Cutters

Specialty cutters, such as grooving tools, are indispensable for cutting precise grooves and intricate shapes in cylindrical workpieces. These tools can create a variety of groove shapes, including V-shaped and square, catering to specialized machining needs.

Another type of specialty tool is a combination cut-off and bar puller.  It can save you a slot on your tool turret or gang setup.

royalbarpuller1a

Royal’s combination cut-off and bar puller via MMSOnline…

Selecting the Right Tool Bit Material

Comparison of different tool bit materials

Choosing the right tool bit material is vital for efficient metal removal, with factors like cutting speeds, workpiece material, and tool bit hardness having a significant impact. High-speed steel, known for its hardness and heat resistance, is a popular choice for creating durable industrial cutting tools.   However, much higher performance can be achieved using Carbide-Tipped tools.

High-Speed Steel (HSS)

High-speed steel, alloyed with elements to enhance hardness and heat tolerance, stands out for its ability to maintain a cutting edge at high temperatures. Cobalt high-speed steels, such as M35 and M42, and Tungsten HSS like T15, exemplify the material’s adaptability to high-temperature cutting, solidifying its place in various lathe applications.

Carbide-Tipped Tools

Carbide-tipped tools, characterized by their durable carbide cutting edge and shock-absorbing steel body, provide a balance of toughness and resilience, making them suitable for aggressive cutting operations.

Other Materials

Cobalt and diamond stand out as tool bit materials, offering enhanced heat resistance and precision machining capabilities, respectively. Cobalt is known for its longevity in tough cutting conditions, while diamond is prized for its hardness and ability to deliver an excellent surface finish.

Lathe Tooling Maintenance and Care

Maintenance and care of lathe tools

Maintenance of lathe tooling is imperative for guaranteeing their durability and maintaining their precision. From unplugging the lathe for safety to cleaning and storing tools properly, every step taken in maintenance contributes to the tools’ performance and the quality of machined parts.

Cleaning and Storage

Correct cleaning and storage of lathe tools help prevent rust and ensure the tools are always ready for use at hand.

An organized and clean tool ensures reliability and extends the tool’s life.

Sharpening Techniques

Sharpening is not just about maintaining a tool’s edge; it’s about ensuring that each cut is as precise as the first. Regular sharpening maintains the accuracy of lathe tools and ensures a high-quality finish on machined parts.

Inspection and Replacement

Regular inspections allow machinists to detect when a tool is overly worn or damaged and requires replacement, thereby maintaining work quality and safety standards.

Optimizing Your Lathe Setup

Machining efficiency is not only about the tools but also their organization. From articulated arms with tooling shelves to wall-mounted storage, optimizing your lathe setup is crucial for quick access and a clutter-free workspace.

Tool Post Alignment

Accurate tool post alignment is crucial for successful machining operations. Whether it’s using a fishtail gauge or a dial test indicator, achieving proper alignment ensures that the lathe delivers precise cuts and maintains tool integrity.

Turret and Gang Tooling Considerations

See our excellent post on 9 Essentials to Think About When Setting Up Your CNC Lathe Tooling for more on this topic.

Workholding Considerations

Effectively securing the workpiece is as crucial as maintaining the sharpness of the cutting tool. Techniques such as using a jaw boring ring or applying the right pressure during boring can make a significant difference in workholding and ultimately, in the quality of the machined product.

Speed and Feed Rate Adjustments

Modifying cutting speeds and feeds is crucial for achieving efficiency in lathe operations. These adjustments are critical in minimizing time loss and enhancing the machining process.

Our G-Wizard Calculator handles a full range of Lathe Tools:

G-Wizard handles a full range of Lathe Tools.

Real-World Applications of Metal Lathe Tools

Metal lathe tools, the unsung heroes across various industries, tackle the challenging tasks of metal shaping with efficiency and adaptability. From aerospace to automotive, these tools are indispensable in producing a vast array of products.

Machining Precision Parts

Industries like aerospace, defense, and space depend on precision CNC lathe machining for producing complex-shaped parts from materials such as Inconel, titanium, and aluminum. The lathe’s capability to handle thin-walled parts and various materials showcases its versatility and precision in machining.

Prototyping and Custom Work

Lathe machines play a fundamental role in prototyping and custom work, facilitating the production of specialized components and rapid design modifications. This flexibility is crucial in custom manufacturing, where every part must meet unique specifications.

Repair and Restoration

In the realm of machinery repair and restoration, lathe tools play a key role in guaranteeing precision and accuracy while rejuvenating worn or damaged parts. Their role is crucial in breathing new life into machinery, restoring them to their original glory.

Summary

As we have journeyed through the meticulous world of metal lathe tooling, it’s clear that these tools are much more than pieces of steel. They are the craftsmen’s chisels, the sculptors of the modern industrial era, shaping metal with precision and artistry. Whether it’s turning, facing, or drilling, the proper tooling, maintenance, and setup culminate in the creation of parts that are not just functional but are engineered to perfection. Embrace the potential of metal lathe tools, and let innovation continue to drive the boundaries of precision machining.
