Machining cast iron requires skill and knowledge to ensure a smooth operation. If you’re looking to efficiently cut and finish this robust material, you’ve come to the right place. This article cuts through the complexity with straightforward tips on the best tooling, techniques, and safety practices for machining cast iron, helping you enhance productivity while preserving tool life.

Key Takeaways

  • Understanding the material properties of different types of cast iron — grey, nodular, and malleable — is crucial for tailor-made machining processes and achieving specialized requirements, such as vibration damping, flexibility, or toughness in the final product.
  • Selecting the appropriate cutting tools and techniques, such as carbide cutters, end mills, ceramic inserts, and specific milling methods, is paramount to machining efficiency, tool longevity, and achieving high-quality finishes on cast iron workpieces.
  • Managing safety protocols, including the use of personal protective equipment, machine guarding, and safe operating procedures, is essential to protect workers from hazards associated with machining cast iron, such as flying debris and inhalation risks.

Understanding Cast Iron Types

Illustration of different types of cast iron

Cast iron, an alloy rich in history and versatility, comes in various types, each holding a treasure trove of properties that influence how we machine cast iron. The journey through the landscape of grey, nodular, and malleable cast iron is essential for any machinist aiming to unlock the full potential of these materials. Understanding their machinability and behavior under the stress of cutting tools is pivotal to achieving the desired outcome, whether it’s for automotive parts, intricate art pieces, or robust machinery.

Grey Cast Iron

Grey cast iron, a workhorse of the cast iron family, offers a unique combination of vibration damping and thermal conductivity that makes it ideal for machine bases and housing components. The control we wield over the graphite flakes within this metal, by tweaking the cooling rate and composition, paves the way for customizing its mechanical properties to suit specific applications.

When fractured, grey cast iron reveals its characteristic color, a testament to the graphite flakes that trace the lines of its breakage.

Nodular Cast Iron

Nodular cast iron, or ductile iron, stands strong with high strength, flexibility, and elasticity thanks to its graphite spheroids – a marvel shaped by the addition of magnesium. This variant bends where grey cast iron might break, offering a resilience that’s invaluable in applications where tensile strength and a bit of give are required.

Controlling impurities like sulfur and oxygen is crucial in maintaining the ductility and quality of this iron casting, ensuring each component meets the stringent standards of today’s industries.

Malleable Cast Iron

Malleable cast iron, with its reputation for toughness and ductility, is a prime candidate for parts that endure shock and stress, such as those in heavy machinery and automotive suspensions. Its two primary forms, whiteheart and blackheart, offer a range of ductility and uniform graphite distribution, catering to diverse industrial needs. The transformative heat treatment it undergoes enhances its ductility and impact resistance, making it a material of choice for certain manufacturing endeavors.

Despite being harder to machine, malleable cast iron rewards us with a fine surface finish and accurate dimensions, while being gentler on cutting tools.

Proper Tool Selection for Machining Cast Iron

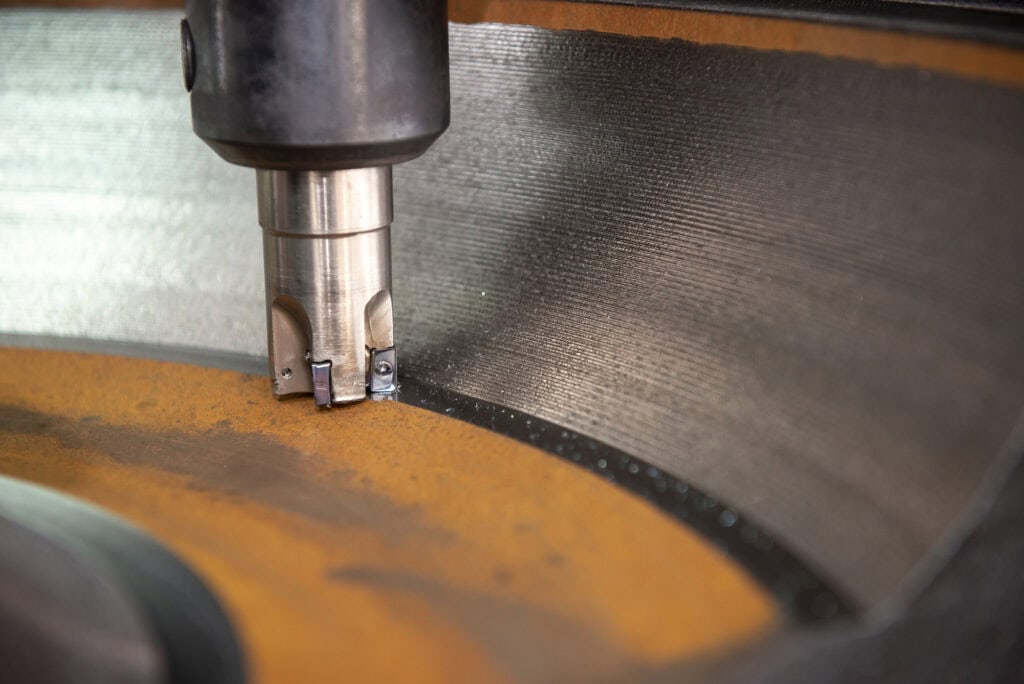

machining cast iron

The art of machining cast iron is as much about the materials as it is about the machine tools that shape them. Selecting the right tool is not just a matter of efficiency; it’s about sustaining performance and extending the life of both the tool and the workpiece. Whether it’s the sharpness of the cutting edge or the specialized coating, the choice of tool can make or break the machining process.

A harder carbide grade, slower cutting speeds, and the judicious application of coolant are the trinity that guards against the abrasive onslaught of small chips in cast iron.

Carbide Cutters

Carbide cutters, the stalwarts in the machining arena, are infused with tungsten carbide to confront the hardest of cast irons with unyielding hardness and wear resistance. These carbide cutter tools, when milling, are not merely removing material; they’re sculpting with precision to leave a surface that’s smooth to the touch.

Sharp-edged carbide inserts become the artist’s brush, crafting finishes on machined cast iron that are nothing short of a masterpiece. With all my cutters at hand, I can achieve the desired precision and quality in my work.

End Mills

End mills are the versatile heroes of the machine shop, capable of executing a symphony of cuts on cast iron with an end mill, including:

  • Slotting
  • 3D milling
  • Contouring
  • Profiling
  • Facing
  • Drilling

Their value lies not just in their precision but in their ability to shape complex and intricate parts with speed and efficiency, ultimately reducing production time and cost.

Ceramic Inserts

ceramic inserts for cast iron machining

Ceramic inserts stand as the vanguards of high-speed machining, their composition granting them the fortitude to resist impact and thrive in the high-velocity environment of cast iron machining. Tailoring these inserts to the condition of the workpiece is akin to choosing the right armor for battle, balancing wear resistance with chipping resilience.

At speeds reaching up to 4000 SFM, ceramic inserts turn the tedious task of machining cast iron into an efficient, productivity-enhancing endeavor.

Cutting Techniques for Cast Iron

Conventional milling technique for cast iron

The journey of machining cast iron is marked by the techniques we employ, each chosen for its ability to refine the cutting process and enhance the end result. Conventional milling, with its tool-preserving methodology, and the judicious adjustment of cutting speed and feed rate, form the core strategies that elevate the efficiency of cast iron machining,.

Conventional Milling

Conventional milling, a time-honored technique, approaches the hard exterior of cast iron first, shielding the cutting tools from premature wear and ensuring a more efficient and longer-lasting cut.

By targeting the most abrasive layer initially, tools are spared the worst, allowing them to engage the softer interior with greater finesse.

Deeper Cuts

Deeper cuts in cast iron are not just a matter of going further; they’re about navigating the material with a deft touch and the right tools. Starting with cuts that bypass the hard casting skin sets the stage for a successful machining operation. Specialized tool tips and a vigilant management of vibration allow for cuts that venture beyond the standard depths, reaching up to 150 thousandths of an inch without compromising the integrity of the workpiece.

To achieve deeper cuts in cast iron, consider the following:

  • Adjust feed rate and cutting depth to optimize the cutting process.
  • Opt for a tougher carbide grade to withstand the demands of the material.
  • Pay attention to notch wear and chip hammering to ensure a smooth and precise cut.

By following these nuances, you can ensure that a deeper cut doesn’t mean a rougher one.

Cutting Speed and Feed Rate

The dance of machining cast iron is choreographed with the cutting speed and feed rate, parameters that must be tuned to the metal’s hardness to reduce tool wear and achieve a superior finish. Regular grades of cast iron glide under the tool at 80-120 SFM, while the harder varieties demand a more careful approach, with speeds dropping to 5-30 SFM.

In some high-speed scenarios, compressed air can step in to assist with cooling and chip removal, although this is a ballet usually performed without such aids. Preventing a built-up edge on tools involves increasing cutting speed, opting for sharper inserts, and applying coolant with precision and concentration.

Workholding and Setup for Cast Iron Machining

Workholding and setup for cast iron machining

Securing cast iron during the machining process is a crucial step that can’t be overlooked, as it ensures the precision and stability necessary for a flawless cut. The initial oversizing of cast iron parts offers flexibility in workholding arrangements, allowing for an array of tactics to be deployed.

Vibration Resistance

Vibration resistance is a cornerstone of quality machining, where the stability of the process translates directly to the excellence of the surface finish. Tools designed with high rigidity and vibration-damping capabilities are essential when working with thin-walled cast iron components to minimize chatter and vibrations. The inherent damping qualities of cast iron, when used in workholding accessories like tombstones, further reduce chatter and improve part quality.

Additional damping solutions, such as vibration-damping materials and tuned mass dampers, along with the strategic placement of clamps and supports, can significantly enhance the machining process stability.

Cast Iron Dust Management

The brittle nature of cast iron makes dust management an indispensable part of the machining process for iron castings, as the small and abrasive particles produced can be detrimental to tool longevity and create a mess in the workspace.

Awareness of how this dust contributes to wear patterns on tools is a necessary aspect of maintaining an efficient machining operation.

Shop Vac and Magnet

Employing a shop vacuum can significantly reduce the amount of cast iron dust in the machining area, helping to protect the tools and maintain a clean environment. A magnet, especially when wrapped in a plastic bag, serves as a practical tool for collecting ferrous metal particles, making disposal a clean and simple process.

To ensure a safer work environment and prevent the harmful spread of dust, compressed air should be avoided in favor of a shop vacuum equipped with a drywall bag to control dust dispersal.

Lubrication and Coolant

The proper application of lubrication and coolant during cast iron machining is a strategic move that plays a significant role in reducing the formation of abrasive dust and minimizing tool wear. The choice of cutting fluid is influenced by cast iron’s softness and self-lubricating properties due to its graphite content, which must be considered when selecting the appropriate lubricant.

Using the right cutting fluids not only prolongs the service life of cutting tools but also ensures a smoother surface finish by effectively managing the heat generated during machining.

Tool Wear and Replacement

Tool wear in cast iron machining can be as subtle as a change in the surface finish or as evident as the appearance of dull chips, signaling that it’s time for a replacement. The abrasive nature of cast iron chips demands careful selection of cutting speed and feed rate to mitigate tool wear and maintain the effectiveness of the machining operation.

Finishing Techniques for Machined Cast Iron

Finishing techniques for machined cast iron

The final act in the machining of cast iron is the finishing touch, where the selection of the right tools, cutting parameters, and post-machining treatments converge to produce a surface that’s smooth to the eye and touch,.

Tool Selection for Finishing

Tool selection for finishing is a critical decision that affects the surface quality of machined cast iron. End milling with carbide tools, particularly of the C2 grade, allows for tight tolerances and a fine surface finish, underscoring the importance of tool quality and condition.

For high-speed operations, the thermal resilience and wear resistance of ceramic inserts make them an excellent choice for achieving that perfect finish.

Cutting Parameters for a Smooth Finish

Cutting parameters play a decisive role in achieving a smooth finish on machined cast iron. To minimize surface irregularities, it is important to:

  • Apply coolant correctly
  • Reduce cutting speeds and feeds
  • Use a larger nose radius on the insert
  • Use a more wear-resistant carbide grade

By following these guidelines, you can avoid plastic deformation and improve the quality of the finish when the tool makes contact with the surface.

Consistency in feed rates and shallow depths of cut are crucial tactics in the quest for a better finish on cast iron, ensuring tools stay true to their path and surface smoothness is maximized.

Post-Machining Treatments

Post-machining treatments are the unsung heroes that elevate the cast surface quality of cast iron to new heights. After the initial machining, the use of progressively finer grits of sandpaper can significantly enhance the final surface quality.

For those seeking an even more refined finish, polycrystalline diamond (PCD) tools can be employed to achieve a mirror-like surface, showcasing the material’s true potential.

Safety Precautions When Machining Cast Iron

Machining cast iron, while a process steeped in tradition and expertise, is not without its hazards. Maintaining high safety standards, including adherence to OSHA requirements, is not optional but mandatory to protect those at the helm of these powerful machines,. Safety measures guard operators from flying debris, equipment malfunctions, and other potential risks, ensuring a secure environment for both the worker and the workpiece.

Personal Protective Equipment (PPE)

Personal protective equipment (PPE) is the first line of defense against the myriad of hazards present in the machining of cast iron. From protective masks to minimize inhalation risks to aluminized apparel designed to shield from radiant heat and molten metal splashes, each piece of PPE plays a pivotal role in worker safety.

Further, the use of protective eyewear, gloves, and flame-resistant base layers ensures that every part of the body is safeguarded against the occupational dangers inherent in metal cutting.

Safe Operating Procedures

Safe operating procedures are the rulebook for machining cast iron, outlining the paths to avoid accidents and injuries. Awareness of the risks associated with cast iron dust, such as its potential for combustion and the importance of maintaining airflow, is crucial for a secure workspace. Adherence to procedures, such as preventing automatic restarts after power failures, reinforces the overall safety strategy, making sure that each step in the machining process is as safe as it can be.

Summary

As we conclude our journey through the intricate world of machining cast iron, we’re reminded of the delicate balance between material understanding, tool selection, cutting techniques, and safety measures. Each element plays a significant role in shaping the final product, and mastery over these aspects is what defines a skilled machinist. Let this knowledge serve as the foundation upon which you can build your expertise, transforming raw cast iron into engineering marvels with confidence and precision.

Frequently Asked Questions

What are the main types of cast iron used in machining?

The main types of cast iron used in machining are grey cast iron, nodular or ductile cast iron, and malleable cast iron. Each type offers specific properties suited for different applications.

How does the choice of cutting tool affect the machining of cast iron?

Choosing the right cutting tool like carbide cutters, end mills, or ceramic inserts is crucial for efficient machining of cast iron. These tools offer hardness, wear resistance, and the ability to handle material abrasiveness, impacting tool life and machined surface quality.

What is the significance of cutting speed and feed rate in machining cast iron?

Adjusting the cutting speed and feed rate according to the material’s hardness is crucial in machining cast iron to reduce tool wear, prevent overheating, and achieve a high-quality finish. Matching these parameters ensures smoother surfaces and minimizes the risk of tool failure.

Why is dust management important when machining cast iron?

Proper dust management is crucial when machining cast iron because the abrasive dust produced can damage machinery and pose health risks to operators. Using shop vacuums, magnets, and lubrication helps preserve tools and ensure a clean workspace.

What safety precautions should be taken when machining cast iron?

When machining cast iron, it’s crucial to wear the necessary personal protective equipment and use machine guarding to prevent accidents and injuries. Always follow safe operating procedures to minimize risks.
