When it comes to graphite machining, precision and efficiency are key. Tackling both requires specialized skills and gear.

In this article, we break down the critical techniques to master graphite’s brittleness while keeping your tools in shape and containing dust.

It is one of CNCCookbook’s Material-Specific Machining Guides.



Key Takeaways

  • Graphite is a superstar in high-temp and electrical uses due to its thermal and electrical conductivity, strength-to-weight ratio, and chemical resistance. But its brittleness needs a special touch.
  • Machining graphite demands knowing its quirks. Use the right cutting tools with coatings like TiN or CVD diamonds to reduce wear. Graphite is abrasive, especially when moist. Optimize spindle speeds and feed rates for tight tolerances and efficiency.
  • Machine Graphite dry–coolants can be absorbed into the graphite with bad results.
  • Beyond basic CNC and dust management, cutting-edge methods like EDM and CVD diamond film inserts boost precision and lifespan of graphite parts, crucial for tough applications in aerospace and industry.





Understanding Graphite and Its Machinability

Illustration of graphite material

Ready to dive into the world of graphite machining? Buckle up, because it’s a ride full of twists and turns!

Graphite is a superhero of materials with its top-notch electrical and thermal conductivity, stellar strength-to-weight ratio, and unbeatable chemical resistance. But beware—its brittleness is like kryptonite, making machining a real challenge. To master graphite, you need specialized tools and a deep understanding of its quirks.

The High-Stakes Game of Graphite Machining

Machining graphite isn’t just a task—it’s an art. It’s a precise dance where every move counts. From selecting the right tools to managing graphite dust, every step is crucial. The secret to success? Knowing and respecting graphite’s unique properties.

Precision is Key

The key to machining graphite is precision. Use cutting tools with coatings like TiN or CVD diamonds to reduce wear. Optimize spindle speeds and feed rates for efficiency and tight tolerances.

Advanced Techniques for the Win

But why stop there? Step up your game with advanced techniques like EDM and CVD diamond film inserts. These cutting-edge methods enhance the precision and longevity of graphite parts, making them perfect for demanding applications in aerospace and industry.

Take Action Now

Ready to transform your graphite machining process? Embrace these techniques and turn your machining challenges into opportunities for excellence. Your high-quality, durable graphite components await!

The Art of Machining Graphite

Illustration of graphite milling process

Machining graphite is like sculpting a marble masterpiece—demanding precision, finesse, and deep material knowledge. The process involves milling, turning, grinding, and drilling, each tailored to create intricate graphite components. But graphite’s brittleness raises the stakes, leading to chipping and increased tool wear, especially with complex designs.

Master the Art

Triumph in this craft with specially designed cutting tools and an expert understanding of graphite’s quirks. Create high-quality, durable parts that stand the test of time.

Get Started

Dive into graphite machining with confidence. Equip yourself with the right tools, hone your techniques, and transform challenges into masterpieces. Let’s carve out excellence together!

Feeds and Speeds for Graphite

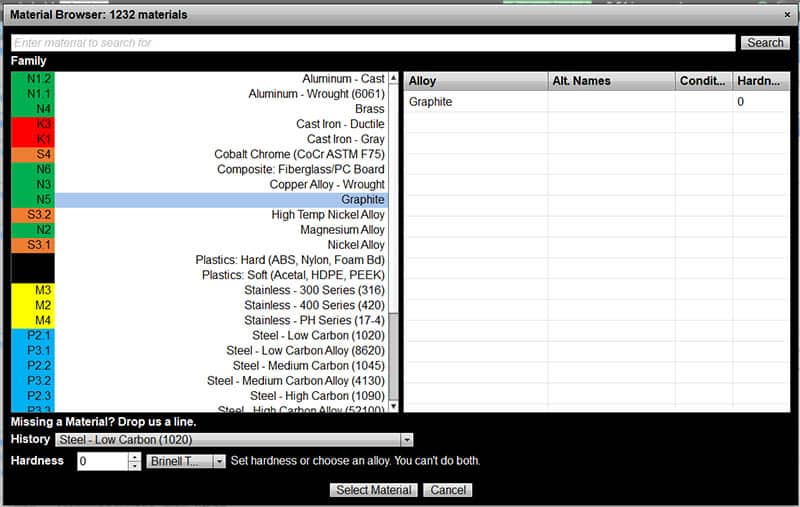

Graphite has its own Feeds and Speeds Sweet Spot like most materials.  And there aren’t very many Feeds and Speeds Calculators that can handle this unique material.  But our own G-Wizard Feeds and Speeds Calculator can:

Graphite Feeds and Speeds

Selecting Cutting Tools for Graphite

Illustration of high helix drill for graphite machining

Choosing the right cutting tool is crucial for successful graphite machining. Graphite’s abrasive nature, especially when moist, wears down tools quickly. Experts recommend high helix, wide land, parabolic flute drills with TiN coatings for deep hole drilling and effective dust extraction. For high-volume production, coated solid carbide or diamond-tipped drills provide extended life and precision.

Precision and Performance

But tool material and coating aren’t everything. Tailor your cutting conditions and drilling parameters to the specific graphite grade for minimal wear and maximum precision. Higher spindle speeds can reduce drill wear, extending tool life and cutting machining time.

Action Time!

Master dust management to prevent buildup in holes. Remember, it’s not just about making a hole—it’s about making the perfect hole. Equip yourself with the best tools, optimize your techniques, and achieve unparalleled precision in your graphite machining projects. Ready to take your machining to the next level? Let’s get drilling!

Managing Graphite Dust During Machining

Illustration of graphite dust management

Graphite machining isn’t just about precision cuts—it’s about managing graphite dust and chips. This conductive dust can cause short circuits and contamination. It’s a health hazard too, so OSHA mandates exposure limits. Operators should wear masks and use strong vacuum systems and ventilation to keep the air clean and breathable. Good ventilation also protects machine parts, ensuring longevity and reliability.

Essential Dust Management

Effective dust management is crucial. Use vacuums or compressed air to keep the cut zone clear of graphite chips and dust. This ensures deeper cuts, superior finishes, and maintains tight tolerances for high-quality components.

Take Action

Stay ahead in graphite machining by mastering dust control. Equip yourself with the best ventilation and vacuum systems. Achieve top-notch precision and keep your workspace safe. Ready to elevate your machining game? Let’s clear the air and get to work!

Optimizing Machining Parameters for Graphite

Illustration of spindle RPM optimization for graphite milling

Precision in graphite machining hinges on the right parameters. High spindle RPMs and proper feed rates prevent burnishing, a bane that causes tool wear and imprecision. Optimizing these factors isn’t just good practice—it’s essential for maintaining tight tolerances.

Precision is Key

This optimization is a delicate dance of speed and precision. It’s a skill developed through experience, where mastery ensures exemplary results. In graphite machining, tight tolerances are the standard, not the goal.

Advanced Manufacturing Techniques

Excellence in graphite component manufacturing goes beyond basics. Techniques like Chemical Vapor Deposition (CVD) diamond film inserts in turning operations and Electrical Discharge Machining (EDM) redefine precision and efficiency. CVD diamond coatings enhance tool life and performance, while EDM excels in crafting precise, complex shapes.

The Right CNC Machine for Graphite

Aside from dust control (covered later in the article), past MMS articles have reported on the benefits of a machine with a fast spindle and a control with a high processing speed for graphite manufacturing. Ideally, the fast control should also have look-ahead functionality, and the user should utilize toolpath optimization software.

Action Steps

Embrace these advanced techniques to improve precision and efficiency in graphite machining. Equip yourself with the best tools and optimize your parameters for top-notch results.

Considerations for Synthetic Graphite

Synthetic graphite production is energy-intensive and leaves a significant carbon footprint. Starting with petroleum coke, the process demands careful raw material selection and meticulous methods. Achieving high-density grades requires repeated impregnation and rebaking, emphasizing precision and effort.

Energy and Cost Factors

Graphitization, sensitive to energy costs, is affected by power shortages and price surges. Balancing quality and practicality is crucial in synthetic graphite production.

Take Action

Dive into graphite machining with optimized parameters and advanced techniques. Consider the environmental and technical implications of synthetic graphite to make informed decisions. Ready to elevate your machining game? Let’s optimize, innovate, and master the art of graphite machining!

Advanced Techniques in Graphite Component Manufacturing

Excellence in graphite machining pushes boundaries with advanced techniques that redefine precision and efficiency. Enter diamond film inserts via Chemical Vapor Deposition (CVD) and Electrical Discharge Machining (EDM)—game-changers in the industry.

CVD Diamond Film Inserts

CVD diamond coatings are a revelation, maximizing tool life and performance. These inserts enhance productivity and ensure consistent part sizes. They’re the secret to making your machining process not just effective, but exceptional.

EDM: The Precision Powerhouse

EDM is pivotal for crafting precise, complex shapes in graphite that traditional methods can’t touch. This technique brings a new level of accuracy and detail to your components.

Take Action

Embrace these advanced methods to elevate your graphite machining. CVD and EDM aren’t just innovations—they’re essential tools for superior precision and efficiency. Tap into the unique properties of graphite and craft masterpieces, not just components.

Ready to revolutionize your graphite machining process? Let’s innovate, optimize, and create with precision!

Special Considerations for Synthetic Graphite

Diving into synthetic graphite? Brace yourself for environmental and technical challenges. This energy-intensive process leaves a hefty carbon footprint, sparking sustainability and cost concerns. It all starts with petroleum coke, requiring precise raw material selection and meticulous methods.

High-Density Grades: No Easy Feat

Achieving high-density grades involves repeated impregnation and rebaking—a true test of precision and effort. The graphitization stage? It’s a rollercoaster ride, sensitive to energy cost swings, power shortages, and price hikes.

Take Action

Aware of the environmental impact and technical demands? Good. Now, focus on balancing quality with practicality. Optimize your processes to ensure top-notch synthetic graphite production.

Ready to master the art of synthetic graphite? Let’s innovate, refine, and lead the way in sustainable production!

Designing for Machinability: Working with Graphite Grades

Selecting the right graphite grade is crucial for manufacturing success and product performance. Each grade has unique properties that affect machinability. Here’s what to consider:

  • Particle Size: Finer grains offer better surface finish and reduce tool wear, ideal for detailed electrode production.
  • Flexural Strength: Higher strength means more durability and resistance to breakage, perfect for tough applications.
  • Shore Hardness: Harder grades resist wear and withstand higher temperatures, ensuring longevity.

Why It Matters

These factors aren’t just details—they’re game-changers. Particle size, strength, and hardness determine wear rate, detail level, and machining difficulty. A uniform microstructure prevents uneven finishes and tool deflection. An abrasive slurry can further refine results.

Action Steps

  1. Evaluate your application needs.
  2. Consult with graphite suppliers.
  3. Choose the grade that best fits your requirements.

Optimize Your Design

Master the interplay of graphite grades for optimal efficiency, especially in demanding fields like aerospace and EDM. Ready to elevate your machining process? Let’s select, refine, and achieve excellence!

Crafting Friction Materials from Graphite

Graphite is a linchpin in the friction industry, especially in the manufacture of brake and clutch linings, where its lubricating properties and thermal resistance are invaluable. These properties allow graphite to modulate the braking effect, offering comfort and reducing noise in automotive systems. Additionally, graphite’s inclusion in friction materials stabilizes the friction coefficient, ensuring consistent braking performance.

The benefits of using graphite in friction materials include:

  • Reduced wear, extending the longevity of brake linings
  • Promoting even material distribution for enhanced effectiveness and reliability
  • High thermal resistance and conductivity, making it ideal for applications like automobile brake pads, which must withstand intense and rapid heating cycles and often require companies to produce friction materials with these qualities.

Ensuring Quality in Graphite Crucible Production

In the world of metallurgical applications, graphite crucibles stand out for their ability to withstand high temperatures and their thermal conductivity, making them ideal for:

  • Casting non-ferrous metals
  • Versatility, catering to various furnace types—fuel-fired, electric, and induction
  • Compatibility with a range of metals
  • Promoting even heat distribution without the risk of overheating.

Quality control, testing, and maintenance are essential in the production of graphite crucibles to ensure they meet the demands for durability, temperature resistance, and precise dimensions. These crucibles come in numerous shapes, each categorized and tailored to specific applications, enhancing the precision and efficiency of the graphite machining processes.

Achieving Tight Tolerances with Graphite Machining

Achieving tight tolerances in graphite machining is a testament to the precision and control required in modern engineering. Factors such as graphite’s density, mechanical properties like flexural strength, grain size, and hardness, all play critical roles in determining wear rate, the detail achievable, and the level of challenge in machining operations. These properties are not mere technicalities; they are the pillars on which the reliability and seamless integration of engineered components rest.

The commitment to quality control and adhering to rigorous industry standards is a hallmark of companies like Advanced Graphite Materials. Their dedication ensures that the machined graphite products meet the necessary tight tolerances, a crucial aspect of their success in advanced applications. It’s a journey where every micron counts, and the achievement of tight tolerances is the finish line.

The Versatility of Graphite in Aerospace and Industrial Applications

Graphite’s versatility is a beacon of innovation in aerospace and industrial applications, where its lightweight profile, durability, and conductivity are non-negotiable requirements. The thermal conductivity and chemical resistance of graphite make it the material of choice for enduring harsh conditions, such as those encountered in aerospace and industrial environments. In aerospace, graphite’s utility shines through in the production of components like rocket nozzles and satellite parts, which must resist extreme temperatures and pressures.

Electrical and mechanical devices also benefit from graphite’s unique properties, with graphite brushes being integral for current transfer and self-lubricating graphite bearings supporting various mechanical devices, particularly in harsh environments. The electronics industry, too, capitalizes on graphite’s exceptional thermal and electrically conductive properties, making it a widely used component in numerous electronic devices.

Innovations in Ceramic and Glass Cutting with Graphite

The innovative application of graphite machining techniques to ceramic and glass cutting processes is opening new horizons in manufacturing precision and efficiency. Ceramic machining involves removing material from a ceramic workpiece—a process that can greatly benefit from the precision and efficiency of graphite machining techniques. Glass cutting, on the other hand, requires scoring glass and applying controlled force to break along the line, a process that could see significant advancements through the use of graphite tools for scoring.

These applications highlight the potential benefits of graphite machining in precision and efficiency, while also bringing attention to the unique challenges posed by these materials. The thermal conductivity and high-temperature resistance of graphite make it suitable for creating cutting-edge tools that can withstand the rigors of processing ceramic and glass, materials known for their hardness and brittleness. Through continuous innovation, graphite machining is not just revolutionizing traditional practices but also forging pathways to new applications in industries that demand the highest levels of precision.

Summary

Throughout this exploration, we’ve uncovered the multifaceted nature of graphite machining, from the selection of appropriate cutting tools to the management of graphite dust, and the fine-tuning of machining parameters. We’ve seen how advanced techniques like CVD and EDM have pushed the boundaries of what’s possible with graphite components, and how understanding the different grades of graphite is crucial for designing for machinability. The versatility of graphite in applications ranging from friction materials to aerospace and industrial sectors showcases its indispensable role in technology and innovation.

In summary, mastering graphite machining is about understanding the material’s inherent properties, embracing technological advancements, and adhering to stringent quality standards. It’s a delicate balance of art and science, where precision and efficiency converge to create components that are not only functional but also exemplify engineering excellence. As we continue to innovate and refine our approaches, the potential of graphite machining remains vast, offering a glimpse into a future where the only limit is our imagination.

Frequently Asked Questions

What makes graphite challenging to machine?

Graphite’s brittleness makes it challenging to machine because it can lead to chipping or cracking during the process, requiring specialized equipment and techniques to handle its conductivity and brittleness effectively.

Why are diamond-coated tools recommended for machining graphite?

Diamond-coated tools are recommended for machining graphite because they can withstand the abrasive nature of graphite and maintain sharpness, essential for precision and reducing tool wear. This ensures efficient and high-quality machining of graphite.

How is graphite dust managed during machining?

To manage graphite dust during machining, use high air velocity dust collectors, protective masks for operators, proper ventilation systems, and vacuum or compressed air to clear the cutting zone. These measures help reduce exposure and maintain a clean work environment.

What is the significance of selecting the right grade of graphite for machining?

Choosing the correct graphite grade is crucial as it directly impacts machining performance, surface finish, and tool wear due to variations in particle size, flexural strength, and Shore hardness.

Can CNC machines be used for all types of graphite machining?

Yes, CNC machines designed for graphite, such as high-speed milling and EDM machines, are essential for precise graphite machining and can handle a wide range of tasks.
