Introduction

Sinker Electrical Discharge Machining (EDM) is like a wizard with electric sparks, crafting molds, dies, and intricate parts from tough materials. It’s the go-to method for producing precise, complex shapes with amazing detail and consistency. Known by many names—Die Sinking EDM, Conventional EDM, Plunge EDM, Ram EDM—this technique is a manufacturing marvel.

Imagine: Creating intricate, detailed cavities with pinpoint accuracy—welcome to the world of Sinker EDM.

Why Sinker EDM?

  • Unmatched Precision: Carves high-precision parts from various conductive materials.
  • Versatile: Perfect for making molds, dies, and intricate aerospace components.
  • Consistent Results: Delivers accurate, repeatable shapes every time.

Pro Tips:

  • Pros: Enjoy precision, complex shapes, and minimal material stress.
  • Cons: Prepare for slower speeds, electrode wear, and careful fluid maintenance.

Action Step: Ready to revolutionize your manufacturing process? Dive into Sinker EDM and unleash the power of precision and creativity!

Understanding Sinker EDM

Sinker EDM is like a high-tech symphony, where electrical and mechanical components join forces to sculpt stubborn materials into perfect shapes. This process, driven by thermal energy, outshines traditional cutting tools, making it a hero for metals that defy conventional methods. It’s not just about shaping—it’s about delivering high precision and repeatability across various conductive materials.

Peek Behind the Curtain:

  • The Process: Watch as electrical sparks and mechanical mastery transform tough materials with precision and repeatability.
  • Historical Impact: Uncover the fascinating history that made Sinker EDM a cornerstone of modern manufacturing.

Why Sinker EDM?

  • Precision & Power: Achieve intricate shapes with unmatched accuracy.
  • Versatility: Perfect for metals that laugh in the face of traditional tools.
  • Consistency: Delivering repeatable results every time.

Action Step: Ready to bring precision and innovation to your manufacturing process? Embrace the magic of Sinker EDM and watch your creations come to life with unparalleled detail and efficiency!

The Sinker EDM Process

Sinker EDM kicks off with an electrode, usually made of graphite or copper, shaped to match the final piece. This precisely crafted electrode dives into raw material, submerged in dielectric fluid. And then, the magic begins: as the electrode nears the workpiece, sparks fly, temperatures skyrocket, and the material is sculpted with pinpoint accuracy. By tweaking parameters like pulse duration and current, the process is finely tuned for perfection. Unlike wire EDM, which uses a thin wire, Sinker EDM uses this plunging method for its precise results.

Meet the Unsung Hero: Dielectric Fluid

  • Coolant and Insulator: This fluid keeps things cool and electrically stable.
  • Balanced Composition: Whether petroleum or water-based, it maintains the perfect blend of electrical resistance and viscosity.

The Process in Action:

  • Electrode and Workpiece: They flirt with contact, guided by a servo control system.
  • Sparks Fly: Each spark precisely erodes the metal, crafting features with breathtaking accuracy.

Why Choose Sinker EDM?

  • Precision Sculpting: Achieve intricate details with astonishing precision.
  • Controlled Chaos: The dielectric fluid ensures smooth, controlled erosion.
  • Fine-Tuned Parameters: Adjust pulse duration and current for exact results.

Action Step: Ready to revolutionize your manufacturing with precision and innovation? Dive into Sinker EDM and watch your creations take shape with the magic of sparks and precision engineering!

History and Evolution of Sinker EDM

The tale of Sinker EDM dates back to the 18th century when English physicist Joseph Priestley first documented the effects of spark erosion. Fast forward to the 20th century, Soviet scientists Dr. B. R. and Dr. N. I. Lazarenko laid the groundwork for controlled metal erosion, marking the birth of the EDM process. The first practical EDM machine emerged in 1952, designed by Charmilles to extract broken taps – a milestone in machining history.

Sinker EDM evolved as a powerful tool to conquer metals that traditional etching tools could not, leading to the creation of parts with complexities hitherto unachievable. This evolution continued as the process refined, embracing a wide array of industries, each with its unique challenges and demands. The ability to shape hard and difficult materials with precision and consistency has solidified Sinker EDM as a cornerstone of modern manufacturing.

Key Applications of Sinker EDM

Sinker EDM in Injection Mold Making

Sinker EDM has carved its niche in the world of manufacturing by creating complex cavities with precision. It’s a process that shines in the realms of mold and die fabrication, particularly with hard materials. The ability to produce sharp inside corners and deep ribs has made Sinker EDM indispensable for producing components that demand high accuracy and aesthetic finesse.

Let’s explore the key realms where Sinker EDM stands as the method of choice.

Injection Mold Making

In the world of injection mold making, Sinker EDM is the master sculptor, capable of crafting cavities with complex shapes that defy conventional machining techniques. It’s the go-to for creating:

  • intricate shapes
  • fine details
  • high-quality molded parts that meet exacting standards
  • components with tight tolerances

The precision of Sinker EDM is a game-changer, allowing for the production of components with tight tolerances, and thus, superior function and fit.

The process is particularly beneficial when working with sophisticated designs that demand sharp edges and precision, a common requirement in the high-stakes world of injection molding. With Sinker EDM, manufacturers can confidently produce molds that will yield exceptional products time and time again.

Stamping Dies

When it comes to stamping die production, Sinker EDM is a formidable player, capable of shaping complex forms with high precision and repeatability. It excels in this arena due to its proficiency in crafting intricate and precise features, essential for the stamping process. Some of the key advantages of Sinker EDM in stamping die production include:

  • Ability to work with hard-to-machine materials, often a requirement for demanding stamping applications
  • Maintaining precision without flinching at material hardness
  • High level of accuracy and repeatability
  • Capability to create intricate and complex shapes
  • Efficient and cost-effective production process

With these advantages, Sinker EDM is a valuable tool in the stamping die production industry, providing manufacturers with the ability to create high-quality and precise dies for various applications.

The process’s adeptness at handling materials commonly used in stamping dies ensures that even the most challenging components can be crafted to meet the exact needs of the industry. The resulting parts are not only precise but also robust, capable of withstanding the rigors of stamping operations.

Aerospace Components

The aerospace industry demands nothing less than perfection, and Sinker EDM rises to the challenge, manufacturing high-precision parts from hard materials essential for critical aerospace applications. It’s a key player in the production of critical jet engine components, where precision is paramount, and the margin for error is nonexistent. The ability to machine exotic materials like nickel-based alloys, which are crucial for aerospace due to their resistance to heat, corrosion, and oxidation, is one of the many reasons Sinker EDM is invaluable in this field.

Aerospace components crafted with Sinker EDM offer several benefits:

  • They meet the high standards of the industry
  • They contribute to the overall safety and efficiency of aerospace technology
  • The reliance on Sinker EDM in this sector underscores its unmatched capability to produce components that are both complex and reliable.

Materials Used in Sinker EDM Machining

Sinker EDM Machining Hardened Steel

Sinker EDM’s versatility is reflected in its ability to machine a wide spectrum of electrically conductive materials. This opens up a world of possibilities for manufacturers, allowing them to work with materials ranging from hardened steel and tool steel to exotic alloys and carbides. The process’s prowess in handling tough materials like titanium, nickel alloys, and aluminum speaks volumes about its capability to tackle the most challenging of machining tasks.

However, it’s crucial to ensure compatibility with the materials planned for machining, to harness the full potential of Sinker EDM.

Hardened Steel and Tool Steel

The strength of hardened steel and tool steel is no obstacle for Sinker EDM, which gracefully navigates their complexities to produce intricate geometries. Machining these materials with Sinker EDM involves creating detailed features without inducing thermal or mechanical stress, preserving the integrity of the workpiece. Furthermore, the process’s ability to form complex shapes with sharp inside corners makes it a valuable asset in working with tool steel.

This capability is particularly beneficial in industries where durability and longevity of the tooling are critical. Sinker EDM ensures that tools and dies are not only crafted with precision but also built to last, even under the most demanding conditions.

Exotic Alloys and Carbides

Sinker EDM excels in machining exotic alloys and carbides, materials known for their resistance to conventional machining methods. Titanium, Inconel, and Hastelloy are among the materials that Sinker EDM handles with ease, making it ideal for producing precise molds and components. Tungsten carbide, with its extreme hardness, is efficiently machined using Sinker EDM, often employing copper electrodes with negative polarity to achieve low surface roughness.

The use of advanced electrode materials such as copper and tungsten enhances the quality and reduces wear during the machining process. The high melting points and thermal conductivity of these electrodes contribute to the process’s ability to maintain consistent dimensional accuracy and surface finishes.

Advantages of Sinker EDM

Sinker EDM is not just about shaping metal; it’s about doing so with finesse and sophistication. It defies the limitations of material hardness and brittleness, offering a versatile solution to material selection challenges. Whether it’s intricate parts or complex shapes, Sinker EDM stands out with its high-quality finishes and the ability to machine any conductive material, including thin metal wire, regardless of its hardness.

Let’s delve into the specific advantages that make Sinker EDM a favored choice among manufacturers.

Precision and Accuracy

The hallmark of Sinker EDM is its unwavering precision and accuracy. Achieving tolerances as low as +/- 0.004 mm, the process ensures high precision in part production, earning its reputation as a precision-centric technology. This level of accuracy is critical, especially when dealing with micronic tolerances, making Sinker EDM the method of choice for parts requiring intricate designs and exceptional tolerances.

Experienced EDM providers are integral to the process, leveraging their advanced equipment and expertise to handle complex projects and deliver results that are nothing short of high-quality. The precision and accuracy afforded by Sinker EDM are not just about meeting specifications; they’re about exceeding expectations and pushing the boundaries of what’s possible in manufacturing.

Complex Shape Capabilities

The ability of Sinker EDM to create complex shapes and intricate details is a testament to its versatility. It uses electrodes shaped to match the desired feature, allowing for the creation of complex contours and intricate details that are not achievable with other methods. Sinker EDM is particularly suitable for creating deep cavities and shapes that are challenging for Wire EDM, ensuring safety and precision for complex parts, even those that have undergone prior machining processes.

Sinker EDM and wire EDM machining are both adept at machining components that require:

  • delicate prototypes
  • complex cavities such as deep ribs and sharp inside corners
  • blind holes with irregular shapes
  • cavities that conventional CNC machining cannot produce

The process showcases its unique capabilities in handling complex cuts, setting it apart from other machining processes.

Minimal Material Stress

One of the most significant advantages of Sinker EDM is the minimal material stress exerted during the machining process. The non-contact nature means that electrical discharges can penetrate metals without causing deformations on the workpiece, ensuring the integrity of the material. Additionally, the dielectric fluid acts as a coolant, offsetting excessive thermal expansion and material stress, which is crucial for maintaining the precision of the final product.

The ability to create intricate shapes without inducing stress into materials is a major benefit in applications that require thin walls and delicate structures. This feature of Sinker EDM provides manufacturers with the confidence to produce components that are both structurally sound and aesthetically pleasing.

Limitations of Sinker EDM

While Sinker EDM is a powerful tool in the manufacturing arsenal, it’s important to acknowledge its limitations. The process is generally slower than other machining methods, especially when dealing with deep and complex shapes. Additionally, it has a slower material removal rate, consumes a high amount of electricity, and often requires significant upfront costs for electrodes and maintenance.

Let’s examine these limitations in detail to understand how they might impact Sinker EDM operations.

Slower Machining Speed

The slower machining speed of Sinker EDM is a trade-off for the precision and intricacy it offers. This slower pace is an inherent characteristic of the process, which requires careful control over the spark erosion process for high-precision results. While slower than CNC milling, the advantages offered by Sinker EDM, such as the ability to produce complex shapes accurately, often outweigh the speed considerations.

Comparatively, Sinker EDM can be slower than Wire EDM, but it compensates with its ability to produce complex shapes that Wire EDM cannot, making it a go-to method for specific applications. Understanding the time requirements for Sinker EDM is essential for manufacturers to plan and allocate resources accordingly.

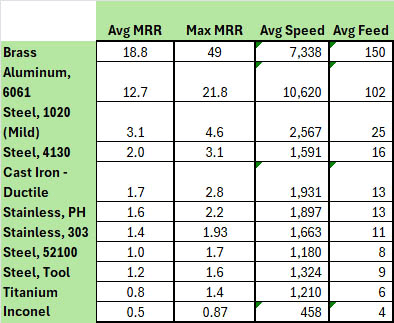

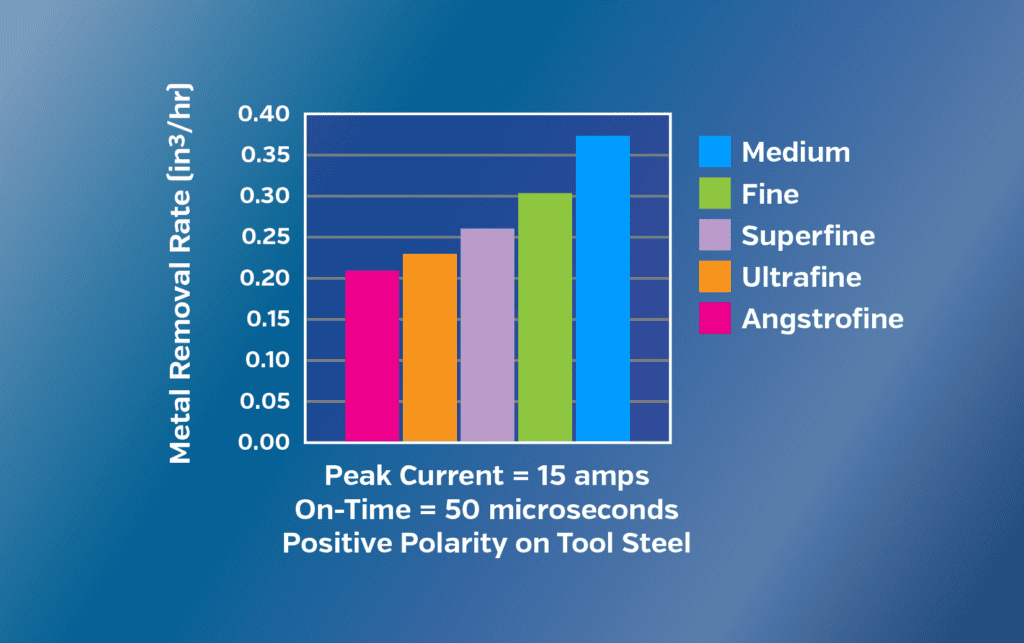

Here are typical Sinker EDM Material Removal Rates using graphite electrodes:

Sinker EDM Material Removal Rates

Compare that to typical material removal rates using conventional end mills:

A table listing machining parameters for various materials, showing values for Average MRR, Max MRR, Average Speed, and Average Feed. Materials include Brass, Aluminum, Steel, Cast Iron, Titanium, and the challenges of machining Inconel.

Electrode Wear

Electrode wear is a significant factor in Sinker EDM, impacting both the accuracy and the cost of operations. As the electrode repeatedly discharges sparks to erode the workpiece, it too becomes worn, necessitating frequent replacement or redressing. The wear rate increases with the intensity of the machining parameters, such as gap voltage, peak current, and pulse duration, thus requiring careful parameter selection to minimize wear and extend electrode life.

Machines equipped with automatic electrode wear compensation features help maintain accuracy and reduce downtime associated with electrode maintenance. While electrode wear in Sinker EDM is even, ensuring consistent dimensional accuracy, it remains one of the process’s limitations, potentially affecting the throughput and cost-effectiveness of production.

Dielectric Fluid Maintenance

Maintaining dielectric fluid purity is crucial for consistent performance in Sinker EDM, as it directly influences machining quality. Regular filtration and replacement of the dielectric fluid are necessary to prevent contaminants from causing unstable discharges. These contaminants can lead to a deterioration in the machined surface quality, underlining the importance of a clean dielectric environment for optimal operation.

The dielectric fluid must be cycled through a filter to remove metal particles and kept below its flash point through a chiller, ensuring the stability of the machining process. Neglecting the cleanliness of the fluid can result in a decline in surface finish and accuracy, emphasizing the need for diligent maintenance in Sinker EDM operations.

Comparing Sinker EDM and Wire EDM

The choice between Sinker EDM and Wire EDM often hinges on the specific requirements of the project, with each process having its own set of strengths and weaknesses. While Sinker EDM is favored for its 3D capabilities, Wire EDM stands out for its precision in 2D cutting and fine surface finishes.

To make an informed decision, it is essential to understand the fundamental differences between these two EDM processes and the factors that influence the selection for a particular application.

Fundamental Differences

Sinker EDM and Wire EDM are distinguished by their operational approaches and the applications they best serve. Sinker EDM, with its custom-shaped sinker edm electrodes submerged in dielectric fluid, is ideal for creating intricate forms and deep recesses within the workpiece. The fluid both cools and insulates, allowing the electrode to generate the necessary sparks to erode the material into the desired shape.

In contrast, Wire EDM employs a continuously moving thin wire as the electrode, making it suitable for detailed profiles and fine cuts. The dielectric fluid in Wire EDM also plays a role in cooling and flushing the wire and cutting area, ensuring a high-quality cut and minimizing the risk of over-burn. These fundamental differences in operation dictate the suitability of each process for a given task, with Sinker EDM excelling in complex, three-dimensional geometries and Wire EDM in precision, two-dimensional profiles.

Choosing Between Sinker and Wire EDM

When deciding between Sinker and Wire EDM, several factors come into play. Sinker EDM is the preferred method for projects involving complex 3D shapes or geometries that require precise contours. It’s often chosen for tasks that demand high precision and fine surface finishes, where Wire EDM’s capabilities shine. Conversely, for hard materials and intricate shapes, Sinker EDM’s strengths make it the suitable choice.

Sinker EDM may be slower, but it’s the go-to for creating deep cavities and intricate geometries, whereas Wire EDM offers quicker production for straight-through cuts. Considering the specifics of the project, such as the complexity of the shapes, required tolerances, and the type of materials involved, is crucial in determining which EDM process will yield the best results.

Innovations in Sinker EDM Technology

CNC Integration with Sinker EDM

The landscape of Sinker EDM is constantly evolving, with innovative advancements enhancing the capabilities and efficiency of this already impressive technology. Innovations in machine design, such as improved thermal stability, added rigidity, and the integration of artificial intelligence, are pushing the boundaries of what Sinker EDM can achieve.

Let’s explore the forefront of Sinker EDM technology and how these innovations are molding the future of precision machining.

CNC Integration

The integration of CNC technology with Sinker EDM machines has been a game-changer, automating complex machining processes and boosting both precision and efficiency. With adaptive controls, these machines are easier and less expensive to automate, making them more accessible to manufacturers. CNC-guided Sinker EDM machines now achieve higher accuracy in electrode positioning, reducing the possibility of human error and enhancing the quality of the final product.

Machines like the exeron 316 Sinker EDM have the following features:

  • Digital AC servo direct drives
  • Glass scales for improved travel and control dynamics across all axes
  • User-friendly interfaces, reminiscent of smartphone technology, making these machines more appealing to the next generation of professionals
  • AI technology that reduces electrode wear and cost by optimizing the process through real-time data analysis.

These advancements in technology are revolutionizing the EDM industry.

Advanced Electrode Materials

The shift towards advanced electrode materials, such as graphite, has revolutionized the efficiency and versatility of Sinker EDM. While copper electrodes continue to be favored in some regions for their purity and reliability, graphite has become the material of choice in the U.S., offering advantages such as faster machining times and reduced wear. Partnering with providers who specialize in specific electrode materials like copper tungsten can further enhance the quality and longevity of the electrodes.

These advanced materials have improved the performance of Sinker EDM by offering better wear resistance and quality finishes, ensuring that the electrodes can withstand the intense conditions of the EDM process. With these innovations, manufacturers can rely on Sinker EDM to produce parts with even greater precision and efficiency.

Getting Started with Sinker EDM Projects

Embarking on a Sinker EDM project requires careful consideration of your manufacturing requirements. This includes:

  • Material type
  • Precision levels
  • Surface finish
  • Production volume

As the technology becomes increasingly cost-effective for high-mix, low-volume production, it is important to assess the specific demands of your process to determine the correct machine and setup.

Let’s delve into how to select the right machine for your needs and the importance of partnering with experienced providers.

Selecting the Right Machine

Selecting the right Sinker EDM machine is a critical decision that should be guided by the complexity of the parts, the required tolerances, and the compatibility of the machine with different electrode materials. The machine’s work envelope must be able to accommodate the maximum size and weight of the workpieces for your applications. It is also essential to match the machine’s capabilities with your production volume to ensure efficiency and cost-effectiveness.

Choosing a machine with features such as AC servos can result in faster ram speeds and improved efficiency during difficult burns. Additionally, evaluating the dielectric system’s capacity and filtration capabilities is important for efficient debris removal, which is crucial for maintaining the quality of the machining process.

Partnering with Experienced Providers

The success of a Sinker EDM project is often tied to the expertise of the providers involved. Providers with a track record of producing challenging components to exact specifications can be invaluable partners in your EDM journey. Innovative solutions, such as custom flushing circuits, can be offered by experienced providers to enhance performance and reduce machining times. Additionally, collaborating with seasoned EDM service providers can lead to design for manufacturability suggestions that improve production speed and accuracy.

Working with providers who possess profound knowledge and experience in EDM ensures that the foundational quality and efficiency needed to produce precise and accurate components are met. Such partnerships can be the difference between satisfactory results and exceptional outcomes in your Sinker EDM projects.

Summary

As we conclude our exploration of Sinker EDM, it’s clear that this technology is not only a pillar of modern manufacturing but also a beacon of innovation. From its historical roots to its widespread application across various industries, Sinker EDM has proven its worth. The precision, complex shape capabilities, and minimal material stress it affords are balanced by considerations of speed, electrode wear, and fluid maintenance. The future of Sinker EDM is bright, marked by advancements in CNC integration and electrode materials. For those ready to embark on Sinker EDM projects, selecting the right machine and partnering with experienced providers will pave the way to success. May this spark of knowledge ignite a fire of innovation in your manufacturing endeavors.

Frequently Asked Questions

No, Sinker EDM can only machine electrically conductive materials like steel, alloys, and carbides, but it cannot machine non-conductive materials like plastics and composites.

The advantages of using Sinker EDM over traditional machining methods include exceptional precision and accuracy, the capability to create complex shapes with intricate details, and minimal material stress, making it beneficial for delicate or thin-walled components.

Sinker EDM's primary limitations are:

  • Slower machining speed
  • Electrode wear
  • The need for regular maintenance of the dielectric fluid.
