Free Metal Weight Calculator [ Pipe, Plate, Angle, etc ]

Last modified: March 13, 2024

Use our complimentary metal weight calculator for various shapes such as pipes, plates, channels, and angles:

Machining software interface with shape menu, material selection, size input field, and results section.

It's built into G-Wizard Calculator under the Quick Ref tab.  It's free to anyone who has signed up for the free 30-day trial or has subscribed to G-Wizard Calculator.  No purchase necessary to use it and all the other free calculators built into G-Wizard.

How to use G-Wizard's Volume and Metal Weight Calculator

Before we go much further, this is a general Material Weight Calculator.  It will figure volume and weight for popular materials ranging from metals (steel, stainless steel, aluminum, brass, titanium, plastic, wood, etc.) in a variety of shapes (pipes, channel, angle, I-beam, etc.) and standard sizes.

After you've installed G-Wizard and gone to the Quick Ref Weights tab, here's how to use it:

  1. Select a shape from the scrolling graphical menu at the top.  The following shapes are available: Pipes, Channel, Angle, I-Beam, Rectangular (Plate and Sheet), Round (Cylinder), Hex, Round Tube, Square Tube, and Sphere.
  2. Choose a Material from the Material box.
  3. Choose the Size in the Size box.  You can either select from the standard sizes in the list, or choose a custom size below.  When you select a standard size, the custom sizes will update to show the dimensions of the standard size.
  4. The Results box will show the results.  There's also a handy calculation so that you can figure parts-related costing.  G-Wizard Estimator uses these functions to help quote jobs.

That's all there is to it.

Some examples will make it clear.

Metal Weight Calculator Examples

Pipe Weight Calculator

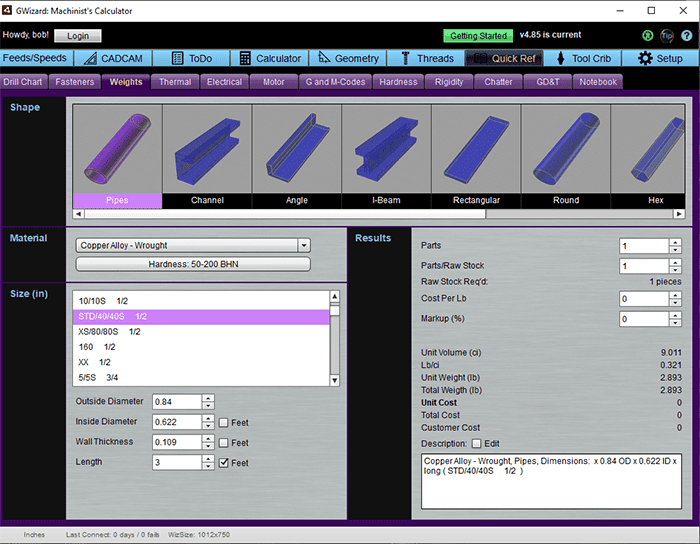

Pipe weights are easy.  Here is the Metal Weight Calculator set up for 3 feet of STD/40/40S 1/2" pipe made of Copper:

Dark background with white text and machining tool interface on a computer screen.

Steel Plate Weight

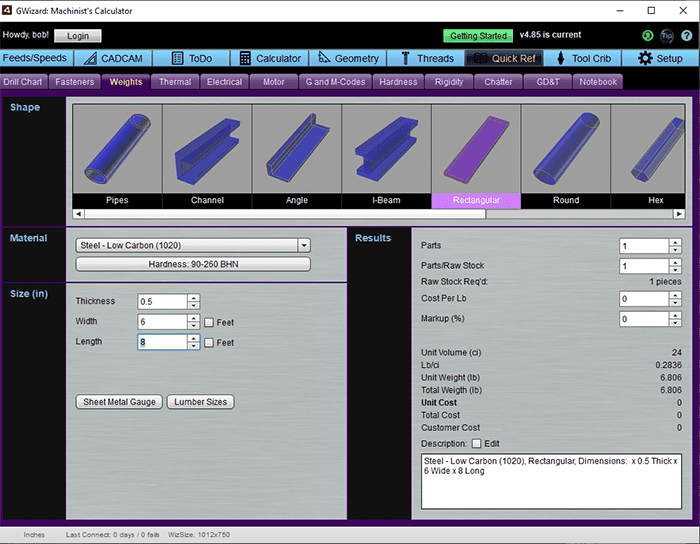

Plates and sheets are calculated via the "Rectangular" shape.  Here is a 6" x 8" piece of 1/2" thick mild steel plate:

3D machining design tool screenshot with various tools and calculations.

How much does a Hex Bar weigh?

Hex Bars can be handy shapes to work with sometimes.  Steel's 12L14 alloy is lovely to turn on a lathe.  The added lead ("L") makes is cut like butter.

The Metal Weight Calculator can use G-WIzard's entire Material Database, which is quite large.  Try finding 12L14 in some other calculator!

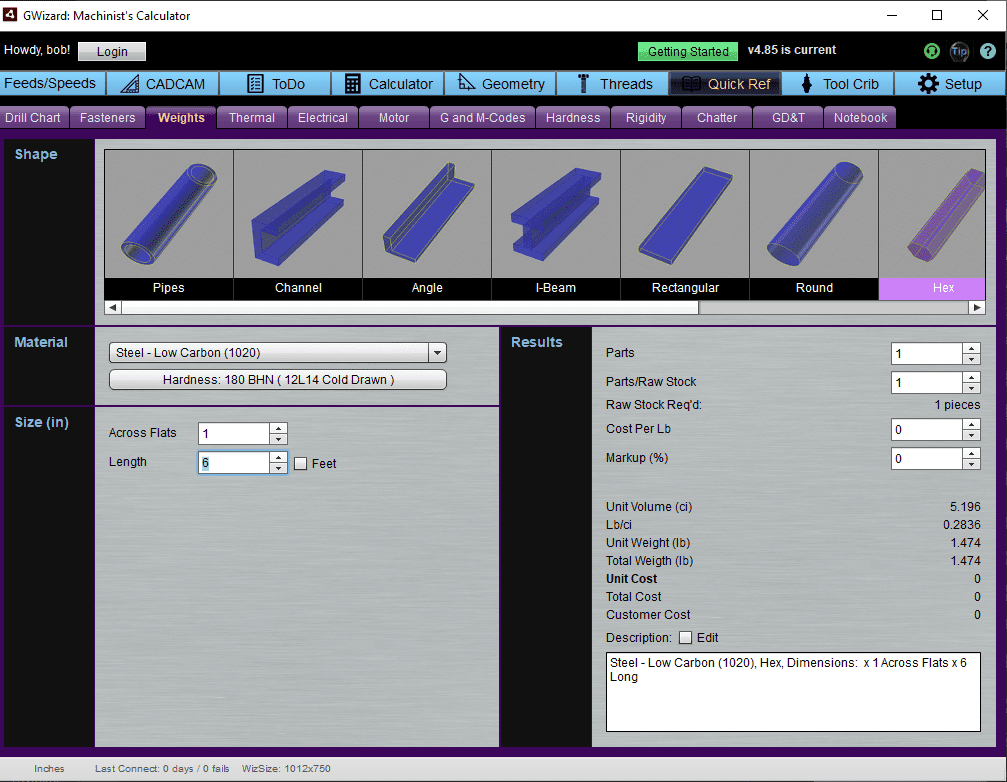

Here's Hex Bar weight calculation for 12L14:

CAD tool screenshot featuring GWizard Machinist's Calculator software and 3D model creation interface with toolbar and output panel.

Steel Bar Weight

Steel Bars are just set up with the Rectangular Shape, easy peasy!

Angle Weight Calculator

Angle Iron is a handy structural material, but you'll be glad to have a Metal Weight Calculator if you need to mess with weight calculations for it.

G-Wizard has all the standard angle iron sizes.  How about a 3 foot chunk of 1-1/2 x 1-1/2 x 1/8 angle iron in mild steel?

GWizard calculator screenshot, "Weights" tab with top menu options and calculation table.

I-Beam Weight Calculator

Setting up I-Beam Weight Calculation is just like angle iron, only start with the I-Beam shape.

Cylinder Weight Calculator

Cylinders weight calculation and Round Bar Weight is done by selecting the "Round" shape.

Square Pipe Weight

Square Pipe Weight can be found by selecting the "Square Tubing" shape.

Sheet Metal Weight

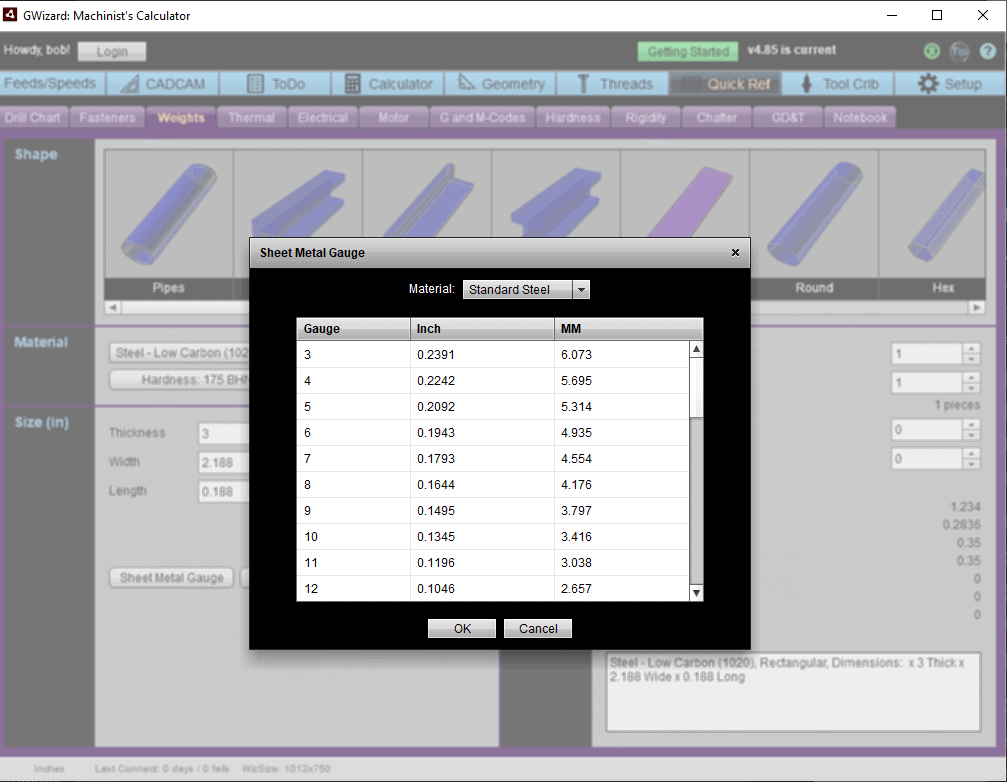

Sheet Metal Weight is calculated by selecting the "Rectangular" shape then using the "Sheet Metal Gauge" button to pick the correct gauge:

Sheet Metal Gauge feature of the GWizard Machinist's Calculator on CNCCookbook.com, with standard steel gauge selection.

Structural Steel Weight Calculator

All the standard structural steel weight calculations can be made using the available shapes.

[ Check Out all the Other Free Calculators Here ]
